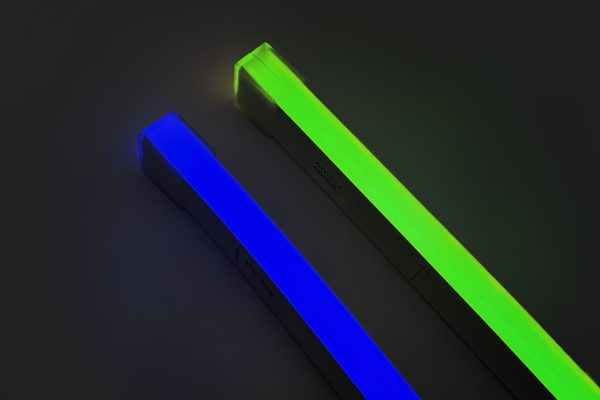

Mini 2.0 Static Color 3.7W

Specifications

Voltage24
ColorBlue, Green
Wattage3.7
Warranty50,000 Hours, 7 Years
CertificationscULus Listed
EnvironmentIP67
Ambient Temp-40° to 131°F (-40° to 55°C)
Cut Length3.28"
Bend DirectionSide Bend
Max Run Length26.24'
Wire Size18 AWG, 2-wire
DimmingIEEE PAR1789, PFM, PWM
Light TypeStatic Color
Other SeriesMini 2.0 Neon
MountingChannels, Clips
Beam Angle114°
Lumens / Ft21, 107
All Products come with:
  • 24/7 Support
  • Satisfaction Guarantee
  • Premium Quality
  • Worldwide Shipping
Share your love

Description

This Series offers architectural-grade, 80+ CRI LED neon in static white and color outputs. This is a durable, outdoor/wet-rated (IP68) product that is UV, Chemical, & Saltwater Resistant. Multiple lead options include back, left, right or bottom as standard or special order injection molding for seamless lighting.

NF-M2N-WT-24V-B
NF-M2N-WT-24V-B-AIM
NF-M2N-WT-24V-G
NF-M2N-WT-24V-G-AIM
NF-M2N-WT-24V-TN
NF-M2N-WT-24V-TN-AIM
