Mini 2.0 Static White 3.7W 80CRI

Specifications

Voltage24
Color Temperature2200K - 5700K
CRI85.4
Wattage3.7
Warranty50,000 Hours, 7 Years
CertificationscULus Listed
EnvironmentIP67
Ambient Temp-40° to 131°F (-40° to 55°C)
Cut Length3.28"
Bend DirectionSide Bend
Max Run Length26.24'
Wire Size18 AWG, 2-wire
DimmingIEEE PAR1789, PFM, PWM
Light TypeStatic White
Other SeriesMini 2.0 Neon
MountingChannels, Clips
Beam Angle113.2˚
Lumens / Ft98, 110, 122
All Products come with:
  • 24/7 Support
  • Satisfaction Guarantee
  • Premium Quality
  • Worldwide Shipping
Share your love

Description

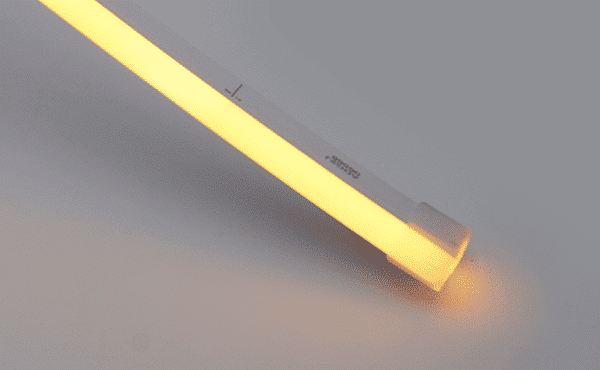

This Series offers architectural-grade, 80+ CRI LED neon in static white and color outputs. This is a durable, outdoor/wet-rated (IP68) product that is UV, Chemical, & Saltwater Resistant. Multiple lead options include back, left, right or bottom as standard or special order injection molding for seamless lighting.

NF-M2N-WT-24V-22K-80
NF-M2N-WT-24V-22K-80-AIM
NF-M2N-WT-24V-27K-80
NF-M2N-WT-24V-27K-80-AIM
NF-M2N-WT-24V-30K-80
NF-M2N-WT-24V-30K-80-AIM
NF-M2N-WT-24V-35K-80
NF-M2N-WT-24V-35K-80-AIM
NF-M2N-WT-24V-40K-80
NF-M2N-WT-24V-40K-80-AIM
NF-M2N-WT-24V-57K-80
NF-M2N-WT-24V-57K-80-AIM
